My photovoltaic system
Live production data
Chart credit: ApexChartsEnergy quality in my area
System information
Symo 5 | Symo 6 | East | South | West | |
---|---|---|---|---|---|
Instant (W) | 0 | 0 | 0 | 0 | 0 |
0,000 kW | |||||
Day (kWh) | 39,70 | 35,90 | 9,96 | 10,50 | 7,32 |
103,377 kWh | |||||
Month (kWh) | 687,00 | 698,90 | 162,03 | 224,12 | 161,76 |
1.933,808 kWh | |||||
Year (kWh) | 3.642,30 | 3.642,90 | 1.009,88 | 1.442,33 | 844,08 |
10,581 MWh | |||||
Total (kWh) | 38.517,50 | 35.838,40 | 3.301,04 | 4.782,19 | 2.727,90 |
85,167 MWh | |||||
Last update | 17.06.2025 22:23:34 |
Voltage (Line to neutral) | Min | CurrentValue | Max |
---|---|---|---|
Line 1 | 199,90 V | 238,60 V | 258,90 V |
Line 2 | 196,80 V | 237,30 V | 257,30 V |
Line 3 | 197,20 V | 237,30 V | 256,40 V |
Voltage (Line to Line) | Min | CurrentValue | Max |
---|---|---|---|
Line 12 | 343,60 V | 412,10 V | 447,00 V |
Line 23 | 341,20 V | 411,00 V | 444,90 V |
Line 31 | 343,90 V | 412,10 V | 446,30 V |
Min | Current Value | Max | |
---|---|---|---|
Network Frequency | 49,60 Hz | 50,00 Hz | 50,10 Hz |

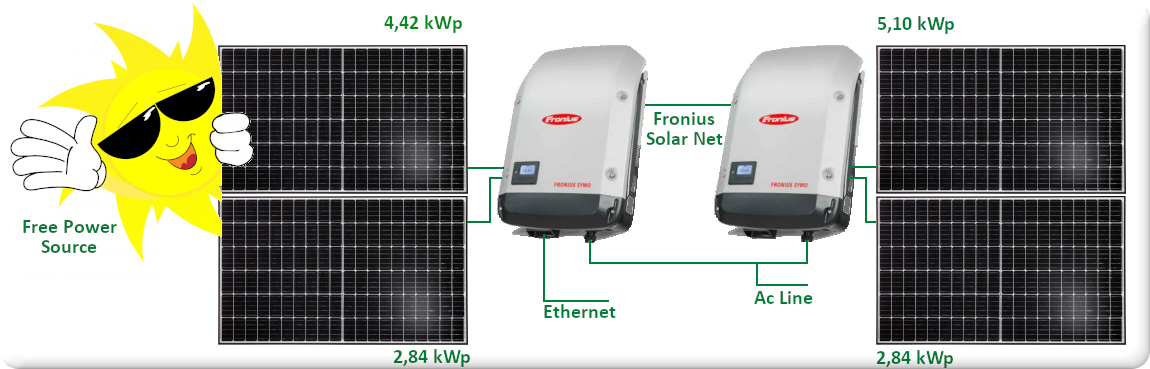

Inverter | Description | Total Inverter power | More info | |
---|---|---|---|---|
1 | Fronius Symo 5.0-3-M | Three-phase inverter Fronius 5.0-3-M, 7,2A, 5 kWh, 2 MPP trackers, 2 + 2 DC connections | 7,26 kWp | Here |
DC1 13 x 340Wp | 13 x Luxor Eco Line LX-340M/158-120+, 340Wp, Efficiency at STC up to 20,53%, Rated voltage Vmpp 34,50V, Rated current Impp 9,87A | Here | ||
DC2 9 x 315Wp | 9 x Luxor Eco Line LX-315/156-120+, 315Wp, Efficiency at STC up to 19,35%, Rated voltage Vmpp 33,51V, Rated current Impp 9,41A | Here | ||
2 | Fronius Symo 6.0-3-M | Three-phase inverter Fronius 6.0-3-M, 8,7A, 6 kWh, 2 MPP trackers, 2 + 2 DC connections | 7,94 kWp | Here |
DC1 15 x 340Wp | 15 x Luxor Eco Line LX-340M/158-120+, 340Wp, Efficiency at STC up to 20,53%, rated voltage Vmpp 34,50V, Rated current Impp 9,87A | Here | ||
DC2 9 x 315Wp | 9 x Luxor Eco Line LX-315M/156-120+, 315Wp, Efficiency at STC up to 19,35%, Rated voltage Vmpp 33,51V, Rated current Impp 9,41A | Here | ||
3 | Victron MultiPlus | 3 x Victron MultiPlus inverter/charger 48/5000/70-100 | Here | |
4 | Victron MPPT DC Chargers | 3 x SmartSolar Charge Controller MPPT 150/45 | 7,65 kWp | Here |
18 x 425Wp | 18 x Axitec AC-425TFM/108WB, 425Wp, Efficiency at STC up to 21,76%, rated voltage Vmpp 31,70V, Rated current Impp 13,41A | Here | ||
Total Power | 22,85 kWp | 18,80 kW |
